LIFTING CAPACITY 3-14 TM

Perfect for small trucks. It has a compact design and plenty of space available on the truck body. These cranes excel in lifting tasks, such as road services of gardening industries.

PRODUCT RANGE

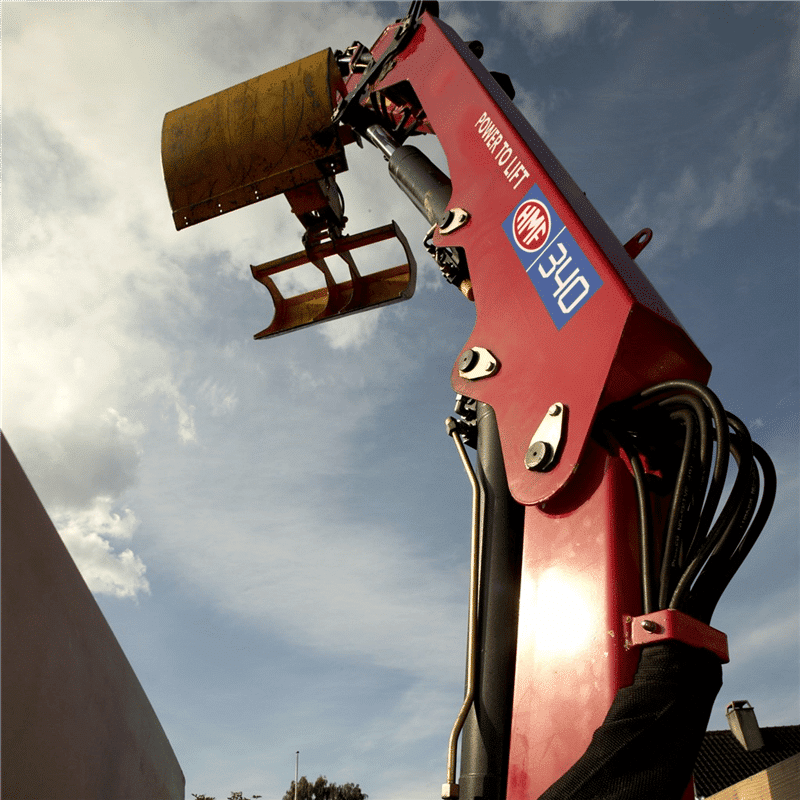

340K

Load moment: 3.2 tm
Hydraulic reach: 4.39 m
Slewing torque: 550 kgm
Slewing angle: 370°
Height above mounting surface: 1591 mm
Width, folder, standard: 1700 mm
Length of crane, no extra valves: 516 mm
Stabilizer spread, standard: 3300 mm
Stabilizer spread, extra wide: 3900 mm
Weight excl. stabilizers: 418 kg
Weight of stablizers, standard: 72 kg
Working pressure: 220 bar
Pump performance: 15 l/min
Power consumption: 5,5 kW

Tech sheet HERE.

610K

Load moment: 6 tm
Hydraulic reach: 5.2 m
Slewing torque: 840 kgm
Slewing angle: 400°
Height above mounting surface: 1840 mm
Width, folder, standard: 2120 mm
Length of crane, no extra valves: 664 mm
Stabilizer spread, standard: 3400 mm
Stabilizer spread, extra wide: 5200 mm
Weight excl. stabilizers: 630 kg
Weight of stablizers, standard: 115 kg
Working pressure: 325 bar
Pump performance: 25 l/min
Power consumption: 14 kW

Tech sheet HERE

810K

Load moment: 7.6 tm
Hydraulic reach: 5.3 m
Slewing torque: 840 kgm
Slewing angle: 400°
Height above mounting surface: 1910 mm
Width, folder, standard: 2220 mm
Length of crane, no extra valves: 664 mm
Stabilizer spread, standard: 3400 mm
Stabilizer spread, extra wide: 5200 mm
Weight excl. stabilizers: 665 kg
Weight of stablizers, standard: 115 kg
Working pressure: 325 bar
Pump performance: 35 l/min
Power consumption: 22 kW

Tech sheet HERE

1120K

Load moment: 10.2 tm
Hydraulic reach: 5.5 m
Slewing torque: 1325 kgm
Slewing angle: 420°
Height above mounting surface: 2135 mm
Width, folder, standard: 2350 mm
Length of crane, no extra valves: 747 mm
Stabilizer spread, standard: 4165 mm
Stabilizer spread, extra wide: 5140 mm
Weight excl. stabilizers: 1000 kg
Weight of stablizers, standard: 160 kg
Working pressure: 345 bar
Pump performance: 35 – 80 l/min
Power consumption: 40 – 58 kW

Tech sheet HERE

1320K

Load moment: 12.3 tm
Hydraulic reach: 6.1 m
Slewing torque: 1325 kgm
Slewing angle: 420°
Height above mounting surface: 2135 mm
Width, folder, standard: 2500 mm
Length of crane, no extra valves: 747 mm
Stabilizer spread, standard: 4615 mm
Stabilizer spread, extra wide: 5590 mm
Weight excl. stabilizers: 1115 kg
Weight of stablizers, standard: 170 kg
Working pressure: 345 bar
Pump performance: 60 – 80 l/min
Power consumption: 40 – 58 kW

Tech sheet HERE
